Well Stocked C Shaped Purlin Steel Roll Forming Machine

Name: Well Stocked C Shaped Purlin Steel Roll Forming Machine
Brand: LIMING
Price: 1 USD

Brand Name : LIMING

Model Number : LM-purlin8

Certification : CE、BV、ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 450set/Year

Delivery Time : 30 work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Applicable Industries : Building Material Shops, Farms, Construction works

Marketing Type : New Product 2020

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Warranty of core components : 2 years

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Control system : Automatic /human interface control

Work Pressure : 16 MPA

Contact Now

Well Stocked C Shaped Purlin Steel Roll Forming Machine

The C-shaped purlins produced by "Well stocked C shaped purlin steel roll forming machine" can be used as the main load-bearing structure for factories and warehouses, warehouses, hangars, hangars, exhibition halls, theaters, stadiums, and large and large factories. Medium-sized industrial and civil buildings.

The motor power of Liming Stamping Form Machine Co.,Ltd "Well stocked C shaped purlin steel roll forming machine" is 11KW-6 poles, and the output power is 8-12 meters per minute.

The front leveling device of the leveling device of the "Well stocked C shaped purlin steel roll forming machine" uses two upper and lower leveling devices. The back row is one to one.

"Well stocked C shaped purlin steel roll forming machine" adopts external adjustment form, single-sided adjustment, fast adjustment speed and simple operation.

Technical parameters of Well Stocked C Shaped Purlin Steel Roll Forming Machine

No.	Well stocked C shaped purlin steel roll forming machine
Sample
1	Profile Size	100-300
2	Suitable Raw Material	0.3-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request
3	Under Frame	400 H-beam
4	Sidewall	20mm
5	Connect Bar	25mm, zinc plated
6	Roller	Gcr15, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway
7	Shaft	80mm, solid, finish turning, cylindrical grinding, with keyway
8	Forming Stations	15
9	PLC	DELTA, TAIWAN
10	Main Motor	15kw, Lichao, Shanghai, with reducer
11	Hydraulic Pump station	5.5 kw
12	Cutting blade	Cr12Mov, quenching 58-62°, double oil cylinder
13	Oil paint	National standard grey
14	Computer screen	DELTA, TAIWAN
15	Chain	double 2inch

China Well Stocked C Shaped Purlin Steel Roll Forming Machine wholesale

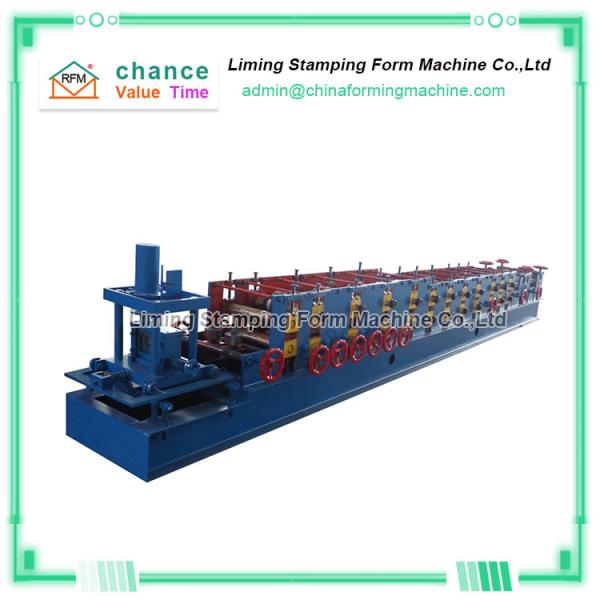

Well Stocked C Shaped Purlin Steel Roll Forming Machine Images
