9.0mx1.1mx1.5m Metal Wall Panel Machine

Name: 90mx11mx15m Metal Wall Panel Machine
Brand: LIMING
Price: 1 USD

Brand Name : LIMING

Certification : CE、ISO

Place of Origin : China

MOQ : 1

Payment Terms : L/C

Supply Ability : 200set/Year

Delivery Time : 45 work days

Model Number : LM- wall panel 1

Price : Negotiation

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Voltage : 380V.50HZ.3Phase

Weight : 5t

Condition : New

After-sales service provided : Engineers available to service machinery overseas,Video technical support

Use : Wall

Warranty : 2 Year

Control system : Taiwan Delta

Color : Customized

Dimension(L*W*H) : 9.0 m x 1.1 m x 1.5 m

Production Capacity : 20-30 m/min

Contact Now

Metal Wall Panel Machine For Sale

Single-layer metal external wall hanging board. It is made of high-quality coated steel for construction. Compared with the composite metal hanging board, in addition to the lack of thermal insulation effect, other performance is also excellent, and the material price is much lower. This kind of hanging board conforms to the current domestic steel structure and the increasing trend of simple structures, and has been more and more widely used in recent years. At the same time, because of the excellent architectural appearance performance of the single-layer hanging board, it is also used in the field of architectural curtain walls, more and more replacing traditional curtain wall materials.

Technical Parameters of Metal Wall Panel Machine For Sale

1	Language	English(Support multiple languages)
2	Name	wall panel making machine
3	Working Speed	8-35m/min
4	Thickness	0.3-0.8mm
5	Raw material:	Galvanized steel ,carbon steel
6	Warranty	24 months
7	After-sales Service Provided	Engineers available to service
8	Key Selling Points	Easy to Operate
9	Coil Weight (T)	4.5T

metal wall panel machine

Product Tags:

9.0mx1.1mx1.5m Metal Wall Panel Machine

LIMING Metal Wall Panel Machine

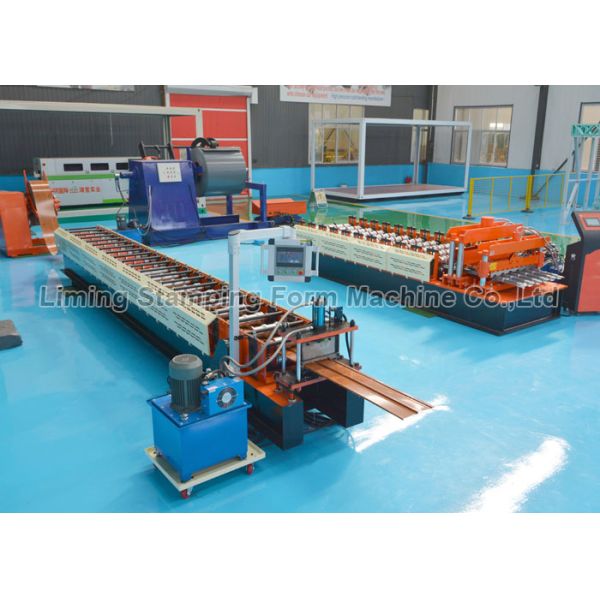

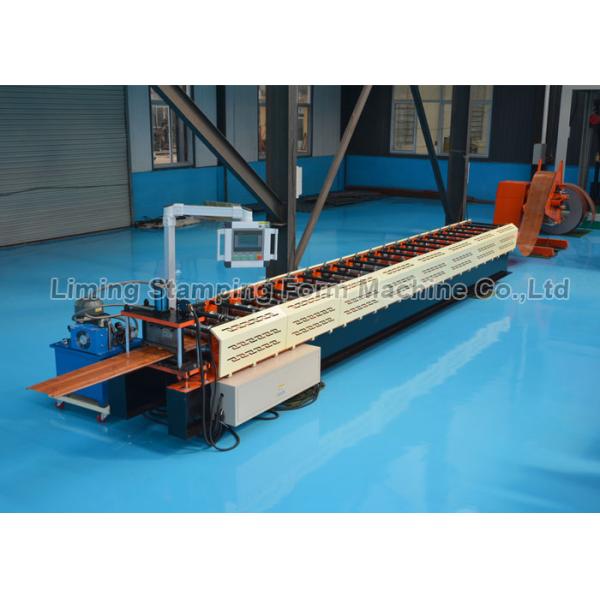

9.0mx1.1mx1.5m Metal Wall Panel Machine Images
